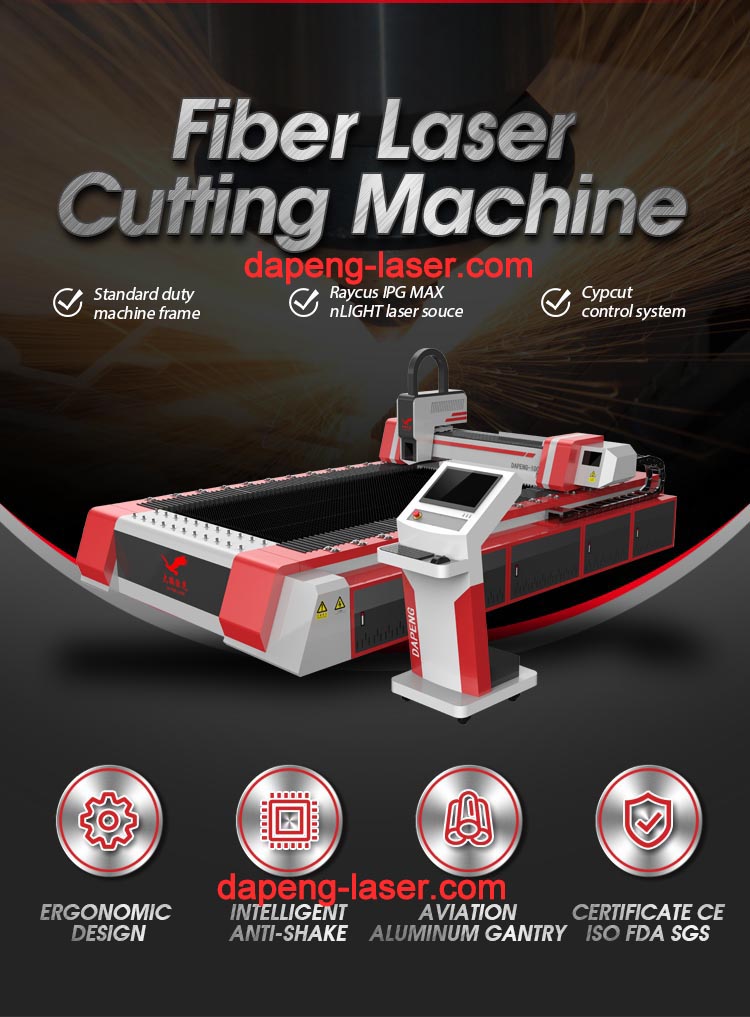

Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
Tel：+86-18565695703
Immediately consult
Main Feature:
1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal

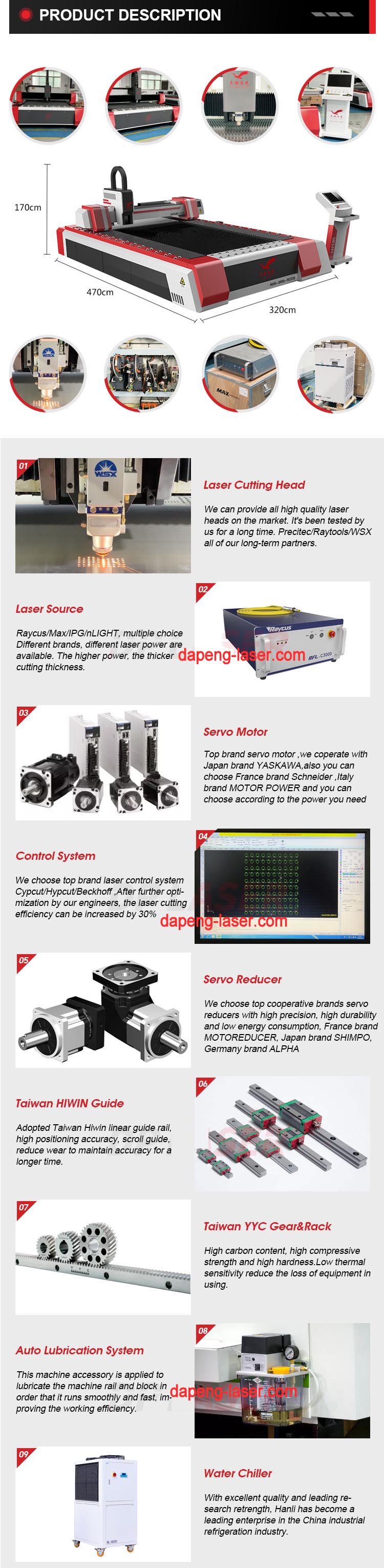

Main Components list:
|
No. |
Description |
Made of origin place and Manufacturer |
|
1 |
Fiber Laser source |
MAX/Raycus /IPG |
|
2 |
Laser Head |
Raytools(Optional autofocus) |
|
3 |
Guide Rails |
Hiwin from Taiwan or RexRoth Guide rail |
|
4 |
Rack & Pinion |
YYC from Taiwan or Appex Race pinion gear. |
|
5 |
Speed Reducer |
Shimpo from Japan or Nugart speed reducer |
|
6 |
Servo Motor & Driver |
Schneider from France or yaskawa servo motors |
|
7 |
Proportional Valve |
Aventics from Germany |
|
8 |
Pneumatic Components |
Airtac from Taiwan |
|
9 |
Circuit Breaker |
Schneider from France |
|
10 |
Relay |
Omron from Janpan |
|
11 |
Chiller |
China TONGFEI |
|
12 |
Cutting System |
China Cypcut |
|
13 |
Bed |
DAPENG 5500kg/7500kg |
|
14 |
Cable Carrier |
IGUS |
Specifications:
|
Model |
DPE-F1000/1500/2000/3000/6000/10000 |
|
Laser power |
1000W |
|
Cutting area(mm)(L×W) |
3000mm×1500mm |
|
Max cutting speed(m/min) |
120 m/min |
|
Max Accelerated |
1.5G |
|
Positioning accuracy |
±0.03mm |
|
Repeatability accuracy |
±0.02mm |
|
Min line width |
0.15mm |
|
Max Cutting depth (Mild Steel) |
12mm |
|
Stainless Steel N2 |
5mm |
|
Aluminum |
3mm |
|
Driving Way |
Imported servo motor |
|
Tranmission Way |
Imported gear rack & pinion double driver |
|
Electrical Requirements |
380V/50Hz.60Amp |
|
Power Consumption |
12KW |
|
Work Piece Weight |
800kg |
|
Weight |
5500kg |
|
Outline size(mm) |
4800mm×2700mm×1900mm (L×W×H) |
|
Outline size with pallet changer(mm) |
8400mm×3000mm×2100mm (L×W×H) |

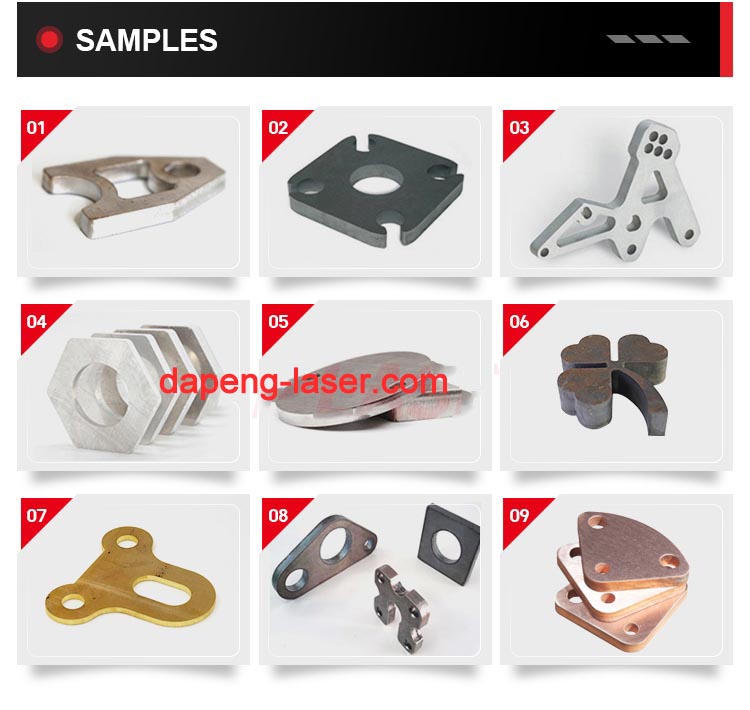

Applicable Materials:
Stainless steel, Mild steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet.
