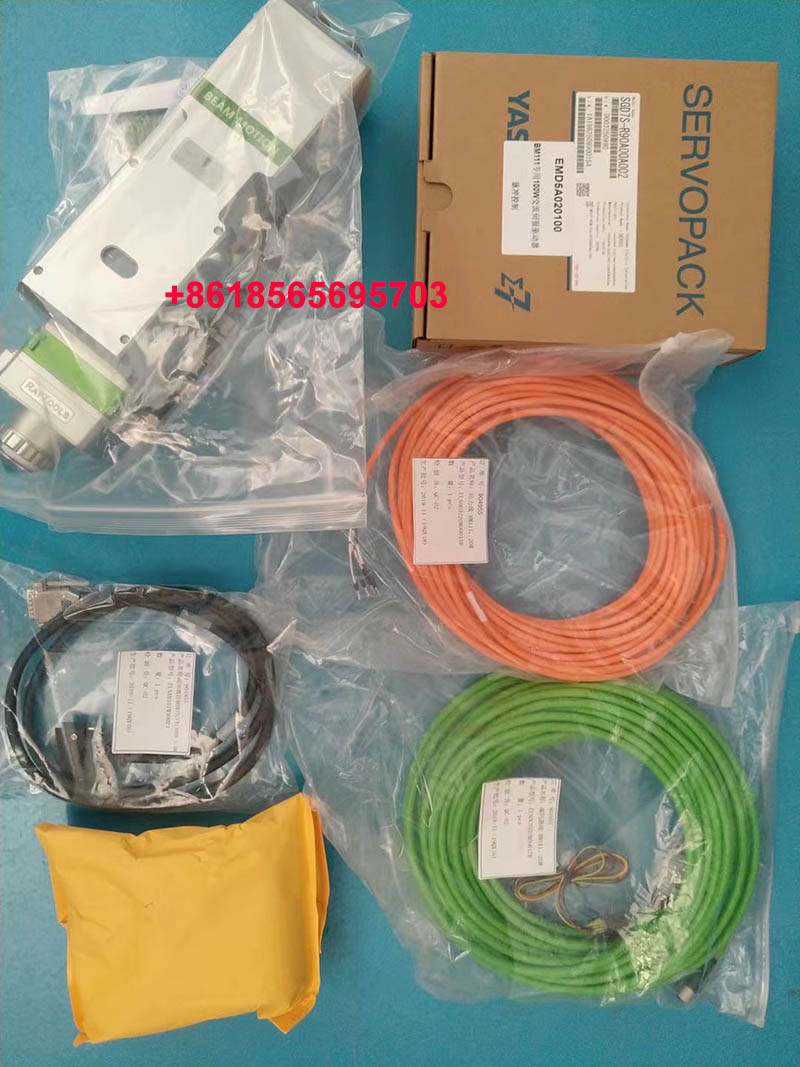

EMPOWER RAYTOOLS BM110 3.3KW Medium Power Automatic Focusing Cutting Head
BM110 series is an auto-focusing fiber cutting head launched by Swiss RAYTOOLS AG in 2019. The product has a built-in motor drive unit, which drives the focusing mirror to automatically change its position within a range of 24mm through a linear mechanism. Users can set continuous focus through the program to complete rapid perforation of thick plates and automatic cutting of plates of different thicknesses and materials. The product is equipped with a D30 compound lens group to integrate the beam, and the optical and water-cooled design is optimized so that the laser head can work continuously and stably for a long time under high power.
Features:
Optimized optical configuration and smooth and efficient airflow design;
Auto focus range +10～-14mm, adjustment accuracy 0.05mm;
Compatible with D30 composite lens, the highest fiber input power can carry 3.3KW;
Focusing lens drive maximum acceleration 10m/s2, maximum speed 6m/min;
Collimation adds a protective lens to effectively protect the collimating lens;
The use of drawer-type mirror bases makes the replacement of protective lenses quick and easy;
Equipped with optical fiber interfaces such as QBH and QD, which can be adapted to various fiber lasers;
|
Auto focus |
|
|
-Range |
+10mm ~-14mm |
|
-Acceleration |
< 10 m/s2 |
|
-Velocity |
< 6m/min |
|
-Accuracy |
< 50 pm |
|
Fiber Interface |
QBH,QD |
|
Clear |
28 mm |
|
Cover glasses |
|
|
-Collimation side |
024.9mm *1.5 mm |
|
-Focus丨ng side |
027.9mm *4.1 mm |
|
Assist gas pressure |
< 25 bar |
|
Weight |
〜3 kg |
