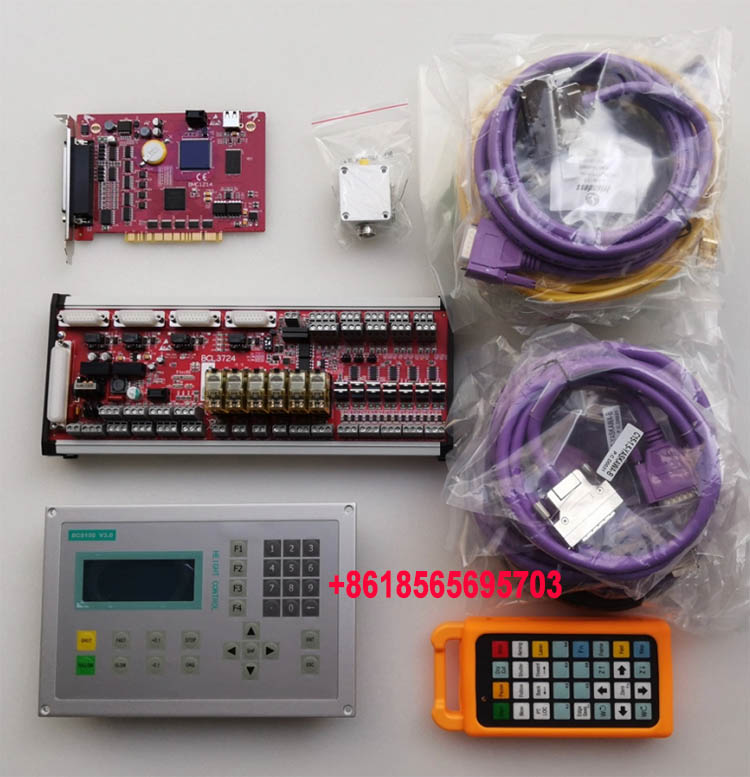

FSCUT4000 is a close loop laser cutting control system designed for high speed and precision application. It provides most advanced technology that allows to self-adjust and cross-coupling control tool path in production, offers user defined and flexible piercing technique, supports position synchronized output (PSO) etc.
Technical Data：
Model：FSCUT4000
Control card：BMC1214
IO terminal：BCL3724
Motor control signal：
X/Y1/Y2/W axes analog output, -10~+10V
X/Y1/Y2/W axes access encoder feedback, the highest sampling rate 10MHz
Dedicated inputs：
4 origin inputs: the default is active-low, support NO/NC options
8 limit inputs: the default is active-low, support NO/NC options
Common inputs：
12 inputs: the default is active-low, support NO/NC options
IN10/11/12 can jump wire to high-level active
Software：CypCut
Interface type：32-bit PCI bus, 132MB/S
Power supply：24V DC/2A
Work environment：Temperature: 0-55℃
Humidity: 5%-95% (no condensation)
Dedicated outputs：
4 DA outputs: 0~10V，50mA
1 PWM output: 5V/24V options, precision of 50KHz (0.1%)
Common outputs：
6 relay outputs: load 250V AC/5A, 30V DC/5A
14 thyristor outputs: load 24V DC/500mA
Benefits:
System Features：
Flexible piercing technique, support auto change focal position in piercing.
Support advanced cutting technique for thick material production.
Support motor runaway risk detect, find edge, auto focus, pallect changer, auto nest, fly cut, QR code generation, remnant split, laser head frog-leap etc.
Support task scheduling, multi-area production, scan QR import file.
Support fine cutting technique of smooth start and end toolpath.
Control performance：
Close-loop control system with Friendess 4th generation motion control algorithms.
Theoretical control accuracy 0.005mm, practical trajectory accuracy 0.01mm, position accuracy 0.01mm, repetitive position accuracy 0.002mm
Maximum cutting speed 80m/min. Maximum travel speed 200m/min.
Maximum acceleration 2.5G.
Master-slave type dual drive control, cross coupling control, speed and acceleration look-ahead control.
Application：
Fit for high precision cutting machine. Widely used in 3C industry, thin and fragile material production like ceramic glass, polymer film and eye glasses frame etc.
