Raycus Laser Source 20W 30W 50W

Low Price Raycus 20W 30W 50W Q-Switched Pulse Fiber Laser Source 1064nm High Quality Laser Module for Fiber Laser Marking Machine Dapenglaser. Low price for dealers!

Tel：+86-18565695703
Immediately consult

Product overview
Our core advantages:

1) Top 5 laser company in China. Sold 4500 units of laser machines in China market per year, with best price.
2) Usually have 50 units of laser marking machine(Fiber, CO2, UV, Mopa) in stock, lead time 3-5 days.
3) Fiber Laser cutting machine, (1000W-20,000W laser cutter), usually sell 50 units/month in China.

We are looking for distributor. Price is more competitive.
We have 250MB videos and manual reference, if you want, we can send you for free, please leave message.  W..C.. laser_kendy

Features:
1. High beam quality fiber output.
2. Superior reliability, long lifetime.
3. No shadow or virtual open circuit phenomenon, when processing on special materials.

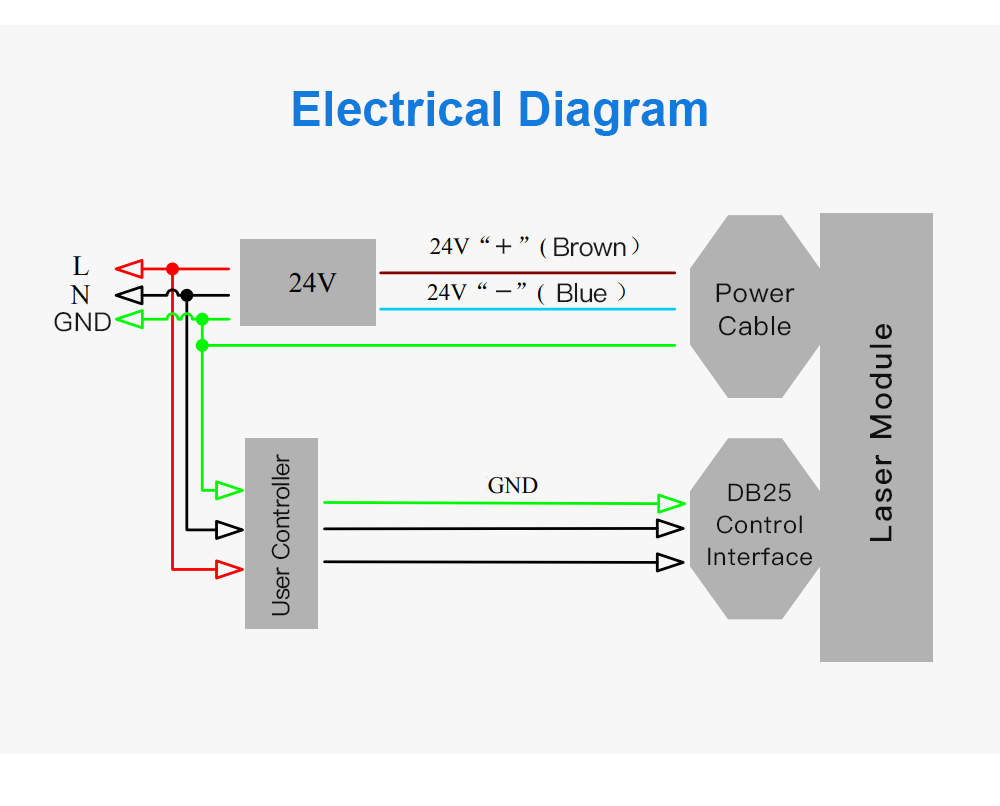

4. Universal DB25 interface.

Introduction:
Q-switched fiber lasers are widely used in industrial marking and micromachining. This series of pulsed fiber lasers are
characterized by high peak power, high single pulse energy, and optional spot diameter. They are widely used in non-metallic,
high-inverse gold, silver, copper, aluminum and non-high-resistance materials. Marking, precision machining, graphic marking, deep
engraving, precision cutting of sheets, drilling and other fields. In marking applications, CO2 lasers are less expensive and more
stable.

Application:
Material processing / Marking / Deep carving / Cleaning
Precision welding / Micromachining / Sheet metal cutting and punching
Underline / Maoization / Silicon processing / Resistance trimming / ITO film etching

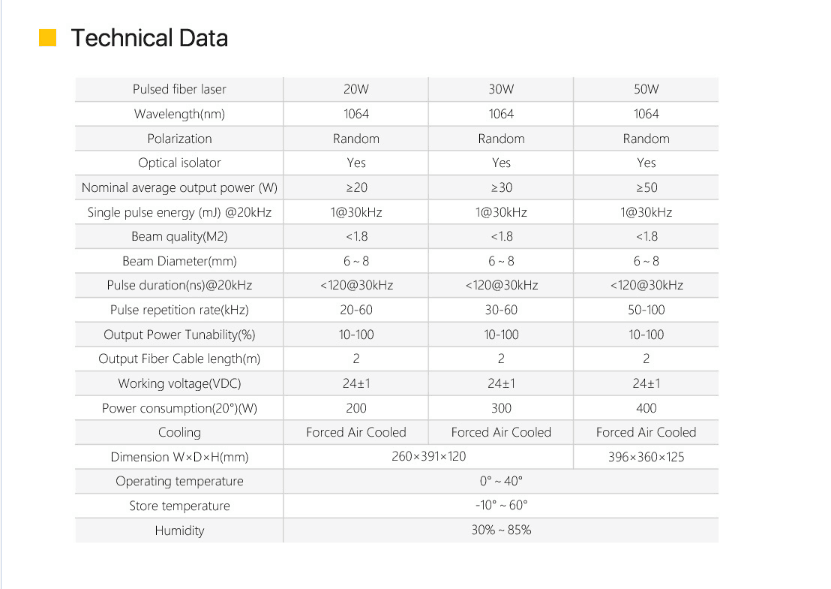

Product Name
Max Raycus JPT IPG Fiber Laser Source
Wavelength
1064nm
Laser power
20W 30W 50W 1000W 1500W 2000W
Beam Quality M2
1.3
Power Range
10~100%
Single Pule Energy
0.67mj
Optical Pulse Width(FWHM)
100ns
Pulse Repetition Frequency (PRF.)
30~60KHz
Delivery Cable Length
2.5m
Working temperature
15-35ºC
Power supply
24VDC
Dimensions
345.5*266.2*120mm
Weight 20w
11kg
Weight 30w 50w
12kg
