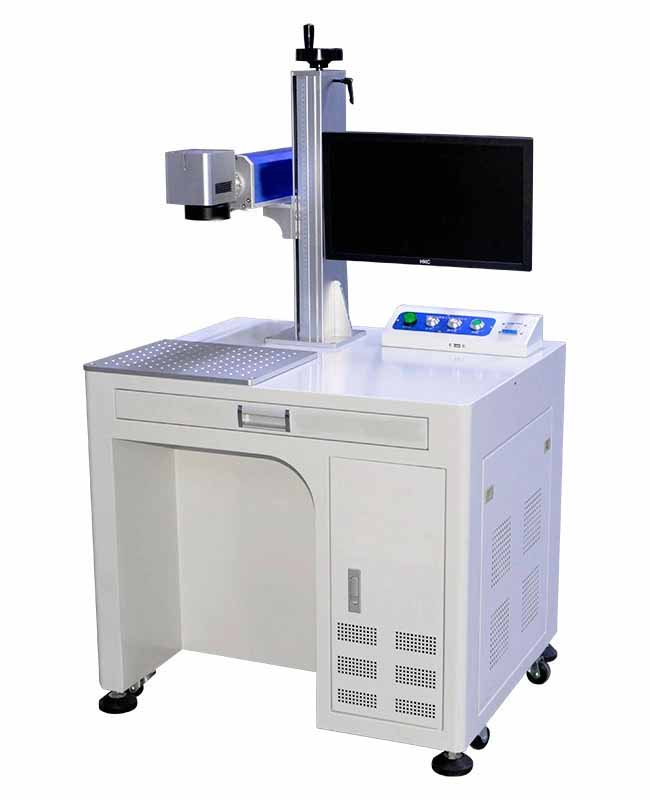

Fiber laser marking machine [MVP]

Features:
1. Excellent light quality:
    Comparing with traditional solid laser marking/engraving machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking/engraving.
2. Low usage cost:
    Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.
3. Free maintenance & long service life:
    Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.
4. Fast process speed:
    Its processing speed is 5-10 times faster than traditional laser marking machine.
5. Mature technology:
    Our company founded in 2007, 10 years experience, good quality.
Application:
Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches, Planting Coating Materials, Spray Material, Plastic, Rubber, Spectacles,Jewelry engraving,etc.
Specification:

Laser wavelength	1064nm
Power adjustment range	10-100%
Repetition frequency	20-80KHz
Output beam quality	<1.8m²
Marking linear depth	0.01-0.2mm
Min. Spot diameter	0.01mm
Min. Character size	0.1mm
Repetition accuracy	±0.02mm
Max. Liner marking speed	7000mm/s
Marking format	PLT, DXF, CDR, AI, DWG, etc.
Software	EZCAD
Standard marking area	20W     150×150mm 30W     180×180mm 50W     300×300mm
Power consumed	<500W
Electrical demand	220V  10%/50Hz/4A
Cooling mode	Air-cooling
Control interface	USB
Laser source	Raycus【MVP】   IPG(Optional)
Computer	WIN7/10
Machine Size & Weight	880×650×1450mm  120Kg
