Flying laser marking machine(Laser-jet)

Features:

1. Excellent light quality:
    Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking.
2. Low usage cost:
    Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.
3. Free maintenance & long service life:
    Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.
4. Fast process speed:
    Its processing speed is 5-10 times faster than traditional laser marking machine.
Application :

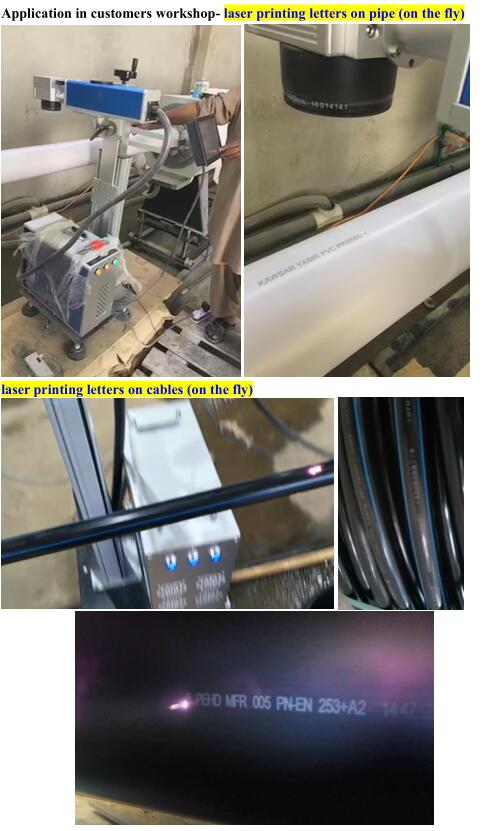

Mainly mark on tubes and pipes, Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches, Planting Coating Materials, Spray Material, Plastic, Rubber, Spectacles,etc.
Specification:

Laser wavelength	1064nm
Power adjustment range	10-100%
Repetition frequency	20-80KHz
Output beam quality	<1.8m²
Marking linear depth	0.01-0.2mm
Min. Spot diameter	0.01mm
Min. Character size	0.1mm
Repetition accuracy	±0.02mm
Max. Liner marking speed	7000mm/s
Marking format	PLT, DXF, CDR, AI, DWG, etc.
Software	Touch screen system
Standard marking area	20W     100×100mm 30W     150×150mm
Power consumed	<500W
Electrical demand	220V
Cooling mode	Air-cooling
Control interface	USB
Usage environment	Clean,no shaking
