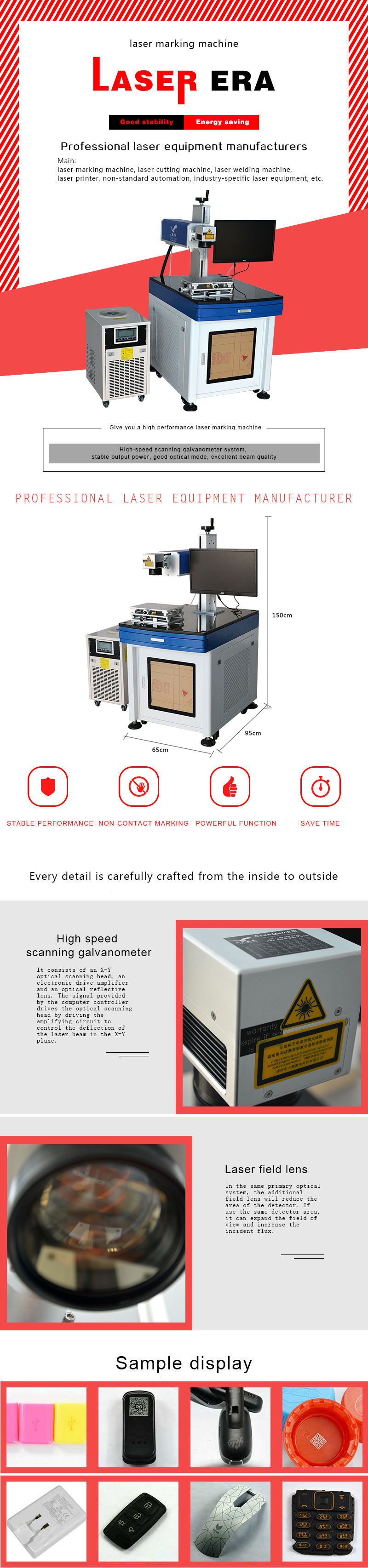

UV laser marking machine

Ultraviolet (UV) laser is a kind of cold light, mainly used in super precise marking and engraving, particularly suitable for food, pharmaceutical packaging material marking, micro punching, glass high-speed dividing, silicon wafer complex graphics cutting, etc.
Without heat effect, the effect of laser marking and cutting is precise, smooth and steep. Except copper, 355nm UV laser could be absorbed by many materials, so it is suitable for manufacture more material type.
Features:
1. High quality light beam, small focal point, ultra- fine marking.
2. High speed and high efficiency.
3. Widely used, because most materials could absorb UV laser.
4. Low energy consumption, environmentally friendly, no consumables.
5. Little affect area, no heat effect, without material burned problem.
Applications:
1.Mark on coated silicon solar panel, Remove the surface film on object:
2.Mark on mobile protection film, LCD screen , optic device, automobile glass etc:
3.Also suitable for most of metal and non-metal material marking or coated surface marking, ie, hardware, ceramic, glasses, clock ,PC, electronic device, PCB and control panel, nameplate and plastic material etc.
Specification:

Power	3W,5W,10W
Laser wavelength	355nm
Repetition frequency	10KHz-150KHz
Marking linear depth	0.01-0.5mm
Minimum line width	0.01mm
Min. Character size	0.15mm
Repetition accuracy	±0.03mm
Max. Liner marking speed	7000mm/s
Marking format	PLT, DXF, CDR, AI, DWG, etc.
Software	EZCAD
Standard marking area	3W     100×100mm 5W     150×150mm 10W   180×180mm
Power consumed	2KW
Electrical demand	220V  10%/50Hz/4A
Cooling mode	Water-cooling
Control interface	USB
Computer	WIN7
Usage environment	Clean,no shaking
