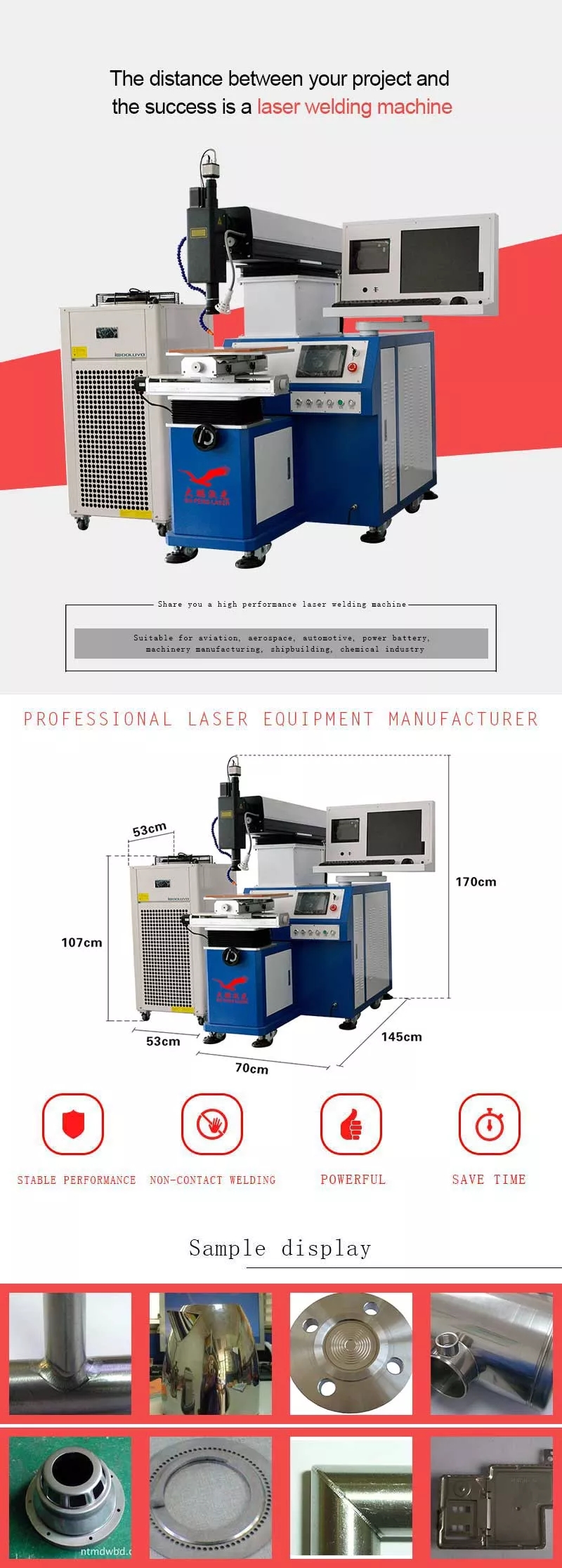

400W automatic laser welding machine

Features:
High degree of automation; simple welding process;
The non-contact method of operation achieves clean and environmentally friendly requirements.
Laser welding machines are widely used in the processing of dental dentures, keyboard welding, silicon steel sheet welding, sensor welding, battery sealing cover welding, etc.
Machining the workpiece with a laser welding machine can improve work efficiency, and the finished workpiece has a beautiful appearance, small weld seam, large welding depth and high welding quality.
Application:
Manufacturing, electronics industry, powder metallurgy, automotive industry, biomedicine;
Laser welding of BT20 titanium alloy, HEI30 alloy, LI-ion battery, etc.

Specification:

Power	400W
Laser wavelength	1064nm
Frequency	1-100Hz
Focus lens	100-150mm
Welding depth	0.1-3mm
Pulse width	0.5-20ms
Spot size	0.2-2mm
Min welding molten pool	0.15mm
Rated power	12KW
Power require	three phase 380VAC 15% 50HZ 40A
Observation system	CCD
Working table stroke	300×200
Laser cavities	gold-plated metal double light cavity
Cooling system	Water cooling
Rotary device	180 degrees rotating(Optional)
Consumables	Xenon lamp, protective lens
