mini handheld laser welder QCW 300W

mini handheld laser welder QCW 300W

Power	Peak Power	Weld stainless steel thickness	Qty	EXW Price
QCW-300W-600	600W	1.5mm	1
QCW-300W-1000	1000W	2.0mm	1


1. The handheld laser spot welder is a high-precision welding device that integrates quasi-continuous fiber laser technology.
2. Its compact, lightweight design combines process flexibility with industrial-grade performance.
3. Optimized for precision welding in complex scenarios, it is suitable for thin sheet welding, advertising sign welding, laser welding of lighting products, and DIY crafting.
4. When welding thin plates 0.3mm-2mm, no deformation, no weld marks, no unsightly scars on the back of the plate.

Technology parameter:

Average power	QCW 300W
Peak power	600W,1000W
Laser wavelength	1080nm
Pulse frequency	1-300Hz
Modulation frequency	1-5000Hz
Maximum single point pulse energy	6J
Output fiber length	2-3m
Cooling method	Air cooling
Touch screen size	5 inch
Product size	375x191x330mm, 12kg
Wooden box size and weight	50x27x44cm, 22kg
Input voltage	AC220V

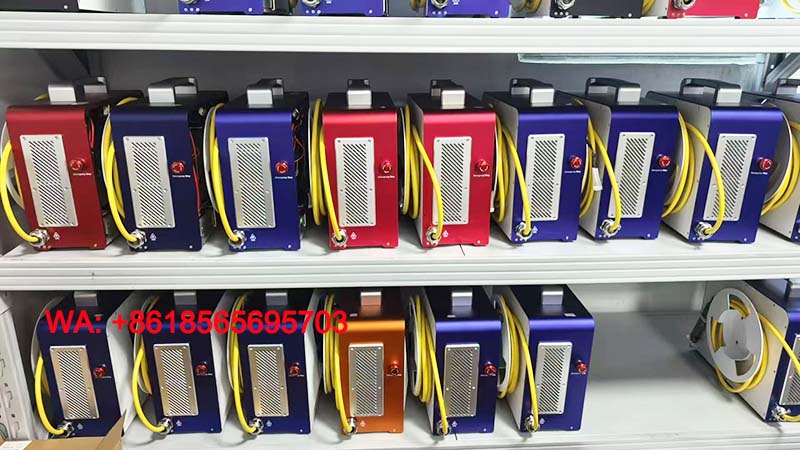

Mini handheld laser welding machine pictures



Send message to whatsapp: +8618565695703 directly, will share you the teaching videos and manual.
