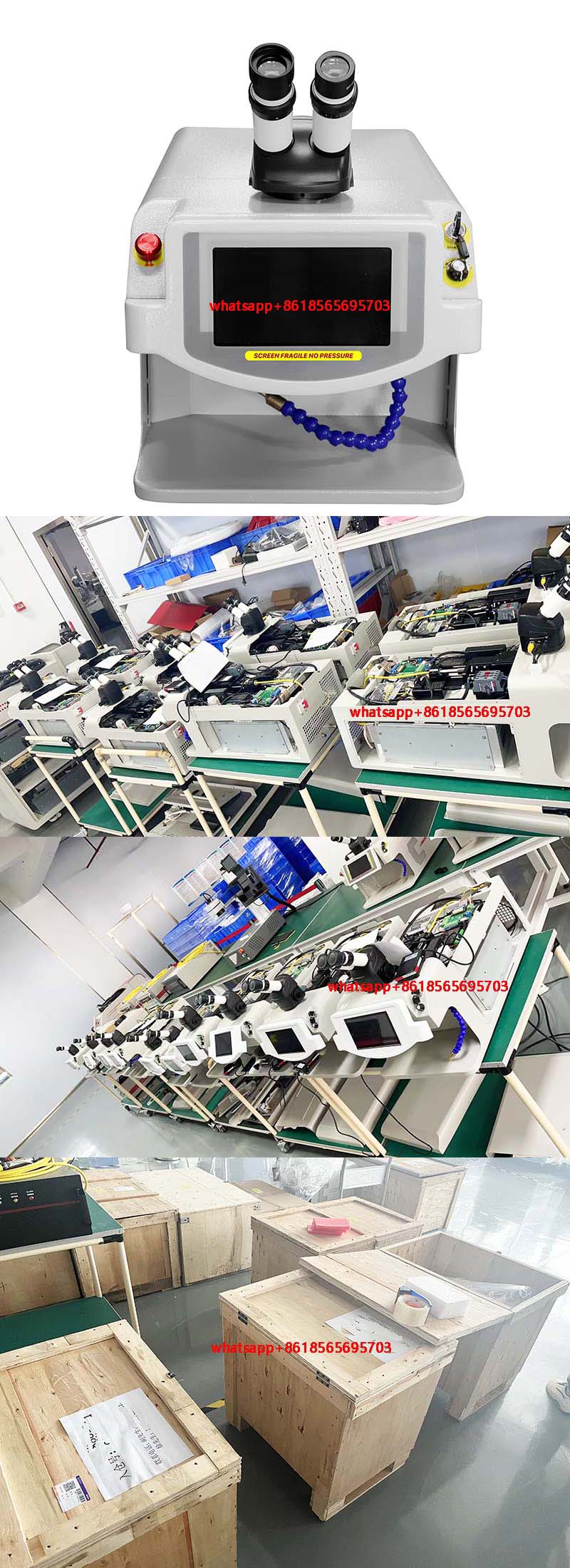

Jewelry laser welder is mainly used in perforating and spot welding of white gold, platinum, carbon steel. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the pulse width, frequency of laser pulse to form specific molten pool.
Features:
1. No need to change xenon lamp.
2. No need to fill water.
3. No need to adjust the spot light path.
4. Mini spot laser welder, work when plugged in, 24 hours of uninterrupted work, and the weight is only 20kg.
5. The core components use 60W Fiber laser source.
6. Compact design, saving space in the workshop or studio, and convenient transportation.
7. The microscope adopts the best brand in China, which is 1.5 times the cost of other ordinary microscopes.
8. Color touch screen, friendly human-computer interface.
Application：
Suitable for laser welding of gold and silver jewelry, laser welding of stainless steel jewelry, manual laser welding of fine metal parts.
Technology parameter:
|
Input voltage |
AC220V±10% |
|
Laser frequency |
1.0-50Hz |
|
Pulse Width |
0.5-50ms |
|
Spot adjustment range |
0.3-1.5mm |
|
Maximum laser power |
60W |
|
Machine power consumption |
300W |
|
Aiming and positioning |
Microscope |
|
Ambient temperature |
10-45℃ |
|
Cooling method |
Air cooling |
|
Laser wavelength |
1064nm |
|
Display touch screen size |
7 inch |
|
Overall size |
550x300x430mm |
|
Net weight |
20Kg |
