Performance and Configuration
Analysis Range 0.01% to 99.99%
Accuracy 0.1% （Au≥96%）
Sample Form Solid, powder
X-Ray Tube Voltage 5KV ~ 50KV
High Voltage Power Supply 0 ~ 50KV
X-Ray Tube Current 0μA ~ 1000μA
Camera HD camera
Filters Selectable customized switches
Detector Type Proportional counter tube
Multichannel Analyzer DMCP
Sample Chamber size 310 * 280 * 90 (mm)
Test Time 5 ~ 60sec
Analysis Range Au, Ag, Pt, Pd, Cu(For use in the precious metals industry only)

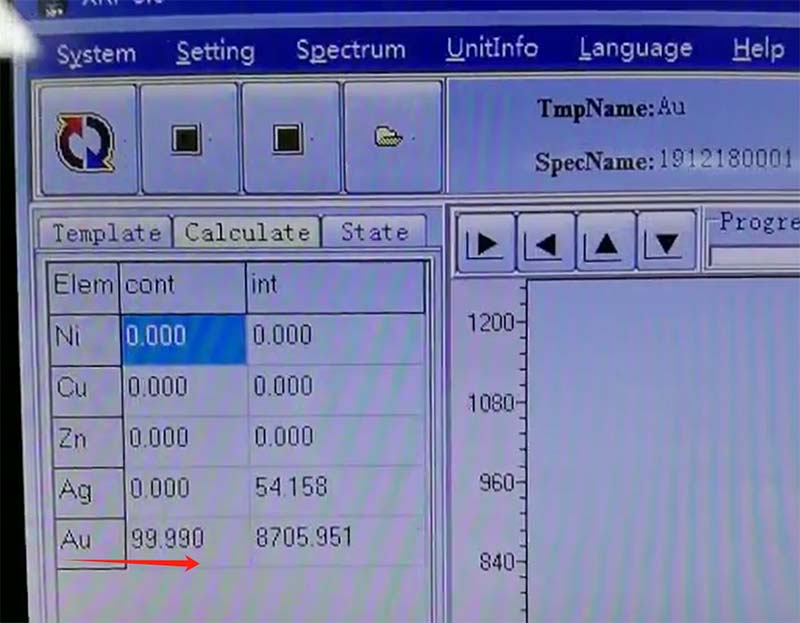

Analysis Software KR qualitative
External Dimensions 400 * 430 * 350 (mm)
Weight 33Kg
Instruments Environmental Requirements
Ambient Temperature 5 ° C ~ 38 °C
Relative Humidity 15% ~ 90%
Power Requirements AC 220V ± 5V, 50/ 60 Hz
No high power electromagnetic and vibration interference sources nearby
