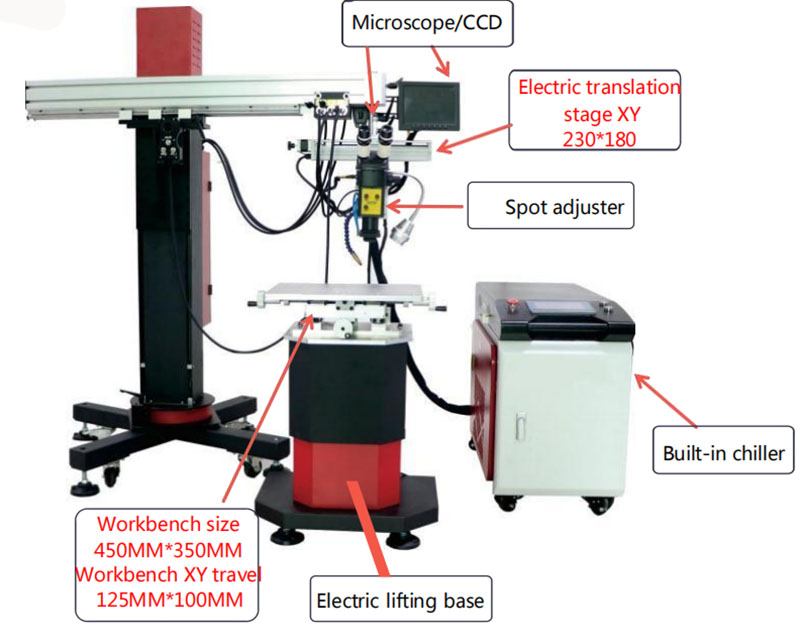

1500W Crane mold laser welding machine
1. Equipped with a dual temperature and dual control water chiller, which can meet the requirements of long hours continuous work and high power welding stability.
2.The working table with precise positioning and a load-bearing capacity can up to 100Kg. Working table X and Y axis with manual moving, Z axis with electric driven.
3.The laser head can slide back and forth, the welding head's objective lens is equipped with water cooling. Welding head can be easily rotate 90 degrees, which is convenient for welding and repairing on any side.
4.With deeper welding depth, the welding is more solid, the welding part can be fully melted without pores and sand eyes, which makes the repair part looks more beautiful.
5.Equipped with gas protection system, can protect the welding part from oxidation and turning black.
Features:
1.The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.
2.High cooling rate, which can weld fine weld structure and good joint performance.
3.Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.
4.The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.
5.No consumables, small size, flexible processing, low operating and maintenance costs.
Application
Suitable for large mold repairing and welding, mobile phone communications, jewelry crafts, electronic components, clocks, sensors, precision machinery, hardware, gas and vehicle parts, various metals and alloys parts, etc.
Technology parameters
|
Laser power |
1500W |
|
Center wavelength |
1080nm |
|
Output power stability |
＜3% |
|
Laser frequency |
50Hz-5KHz |
|
Adjustable power range |
10-100% |
|
Beam quality |
1.1 |
|
Optimal operating environment |
Temperature 0-40 ° C, humidity 20% -80% |
|
Electricity demand |
AC220V |
|
Output fiber length |
10m |
|
Cooling method |
Chiller |
|
Total power |
7kw |
