High speed, high efficiency, deep, small deformation, small heat effect area, high welding quality, pollution free welding spot.

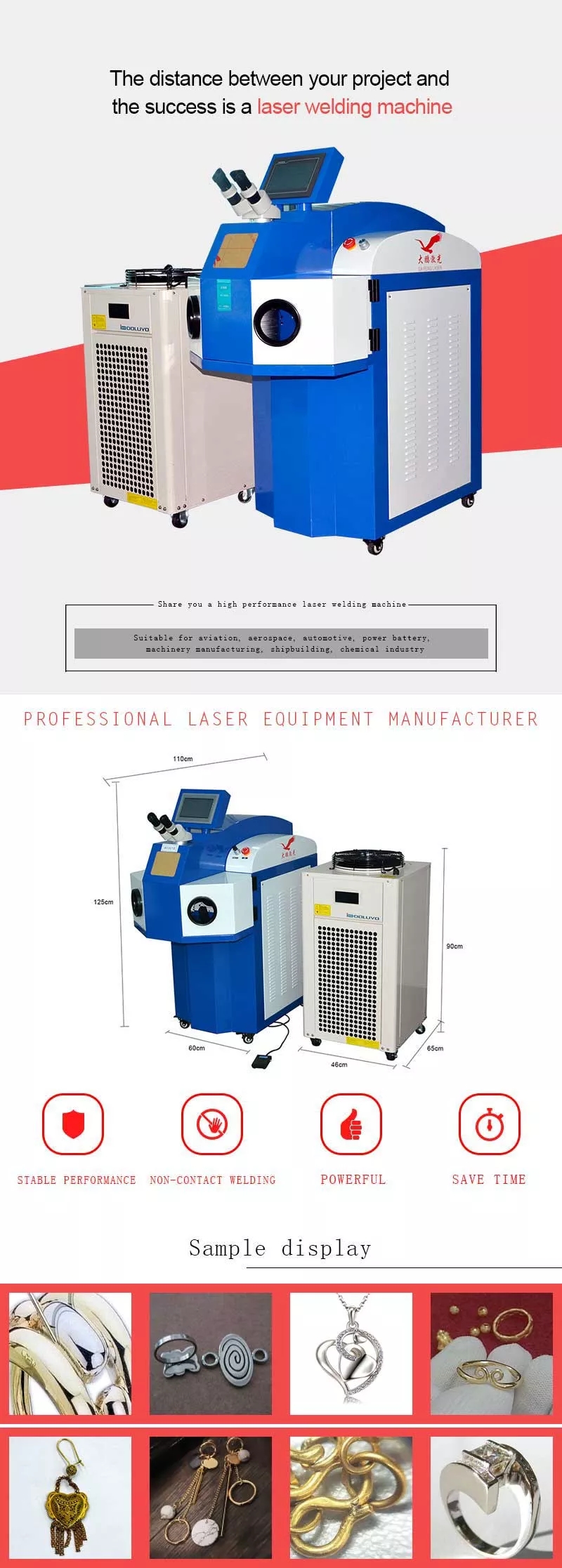

Jewelry laser welder is mainly used in perforating and spot welding of white gold, platinum, carbon steel, stainless steel. The spot welding process is thermal conduction, i.e. the laser radiation heats the surface of work piece, and the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool.
Features:
1. Ceramic converging cavity is imported from UK. Good performance of corrosion resistant and high temperature resistant. The life of xenon lamp is: Max 5 million times.
2. Able to work for 24 hours continuously, stable performance; Human-based design accords with ergonomics, avoiding fatigue after long time working.
3. Widely used in jewelry accessories, electronic components, glasses clocks and watches, hardware, precision equipment, medical equipment, auto parts, gifts and crafts, etc.
Specification:
|
Power |
200W |
|
Laser wavelength |
1064nm |
|
Frequency |
1-100Hz |
|
Pulse width |
0.3-20ms |
|
Spot size |
0.2-2mm |
|
Laser rod |
Φ7 * 145mm |
|
Power require |
Single phase 220 ±15% VAC 50Hz 20A above |
|
Maximum pulse current |
240A |
|
Display Positioning System |
Microscope |
|
Spot adjustment |
Manual |
|
Cooling system |
Water cooling |
|
Ceramic converging cavity |
Import from UK |
|
Consumables |
Xenon lamp, protective lens |
|
Usage environment |
Clean,no shaking |
Standard accessories:
1.Laser power supply, 1 set
2.Laser crystal rod, 1set
3.Focus mirror & Beam expander, 1 set
4.Ceramic converging cavity, 1set
5.Microscope x10, 1set
6.Xenon lamp, 1set
7.Protective lens, 1set
8.Cooling system, 1set
9.Foot switch, 1 set
