Features:
1. Processing speed is fast;
2. Small thermal deformation and heat affected zone (suitable for processing high melting point, high hardness, special materials)
3. Local heat treatment of the parts;
4. It can process complex shapes of parts and small parts, and can also process in vacuum;
5. No noise, no pollution to the environment;
6. Combine with computer technology to facilitate automation;
7. Improved existing product structure and materials due to advanced processing methods
8. Can improve the quality of the workpiece.
9. No pre-heat treatment is required, and the workpiece will not anneal after welding;
10. Deformation-free collapse;
11. No pores and trachoma;
12. Can be used for cracks, collapses, corners, sand holes and repairs after use of the mold;
13. Different hardness hardness materials (such as: HRC60) can be obtained by using materials with different hardnesses. The toughness of the cold die and the cutting edge of the cutter can also be repaired, which eliminates the complicated preheating and heat preservation processes of ordinary argon welding.
Application:
Application:

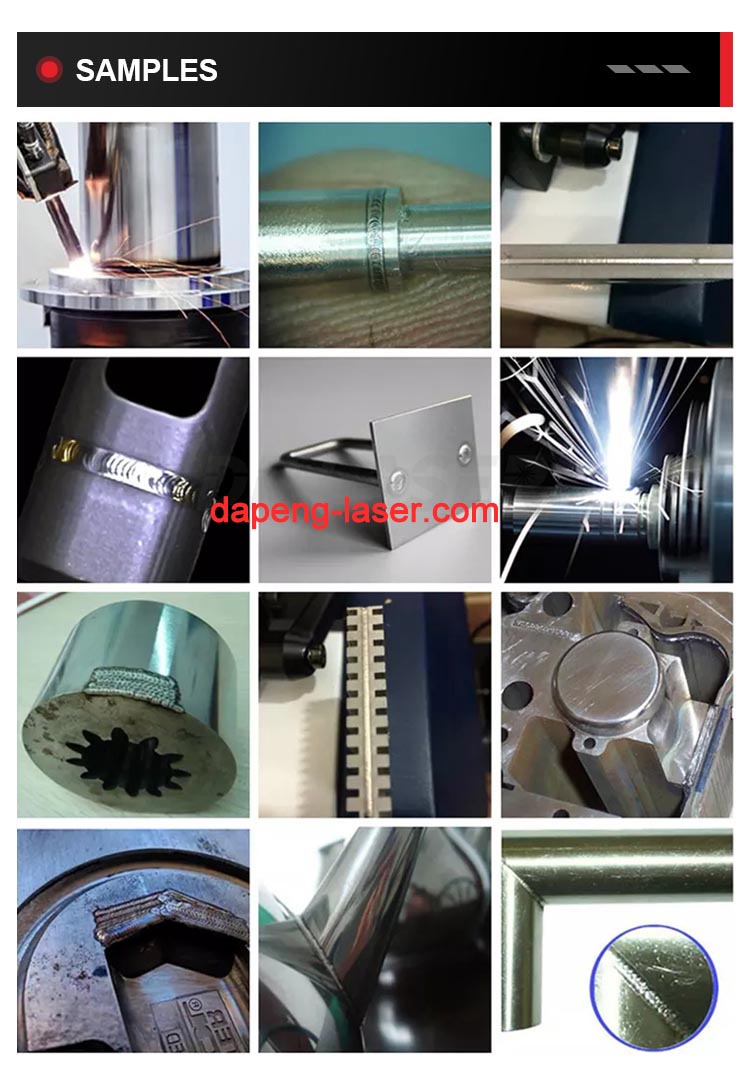

Mold industry
1. Injection mold 2, stamping die 3 die-casting die 4 rubber die 5 copper alloy die
Foundry industry
This welder also has a good performance in casting defects. Quick and precise repair of the pores, slag holes, shrinkage holes, etc. during the casting process.
It has excellent repair effect on defects such as ductile iron, gray iron and stainless steel, and has fast welding repair speed, no color difference or small color difference after welding, and is suitable for the production of factory scale.
Various workpiece parts repair industry
This machine can perfectly repair shafts, teeth and other workpieces.

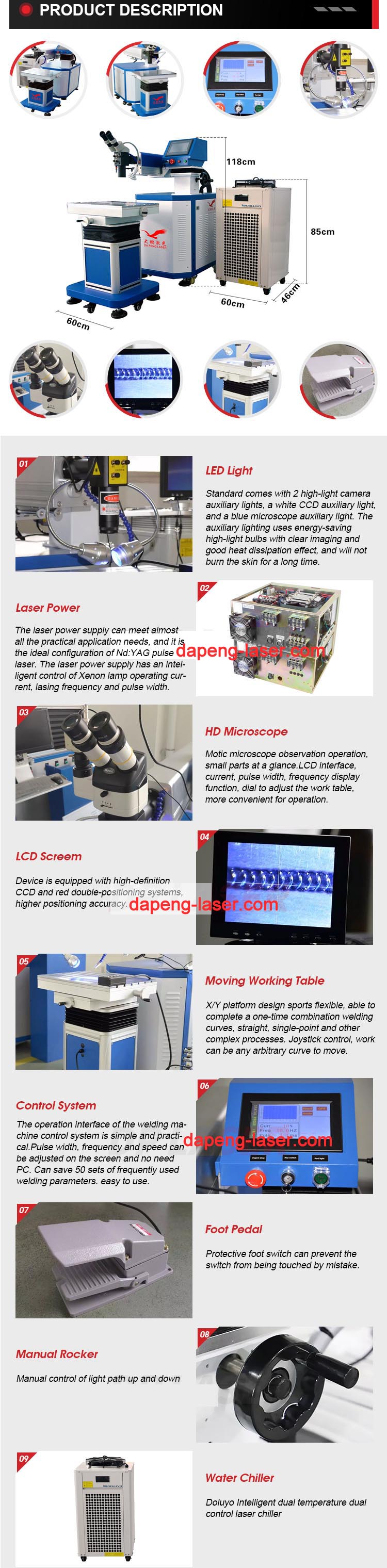

Specification:
| Power | 200W |
| Laser wavelength | 1064nm |
| Frequency | 1-100Hz |
| Pulse width | 0.5-20ms |
| Spot size | 0.2-2mm |
| Laser rod | Φ7 * 145mm |
| Laser welding wire | 0.2-0.8mm |
| Total power | 10KW |
| Power require | Single phase 220 ±15% VAC 50Hz 20A above |
| Display Positioning System | Microscope |
| Spot adjustment | Manual+XY working table |
| Cooling system | Water cooling |
| Consumables | Xenon lamp, protective lens |
| Usage environment | Clean,no shaking |
