Handheld laser marking machine

Handheld laser marking machine

Tel：+86-18565695703
Immediately consult

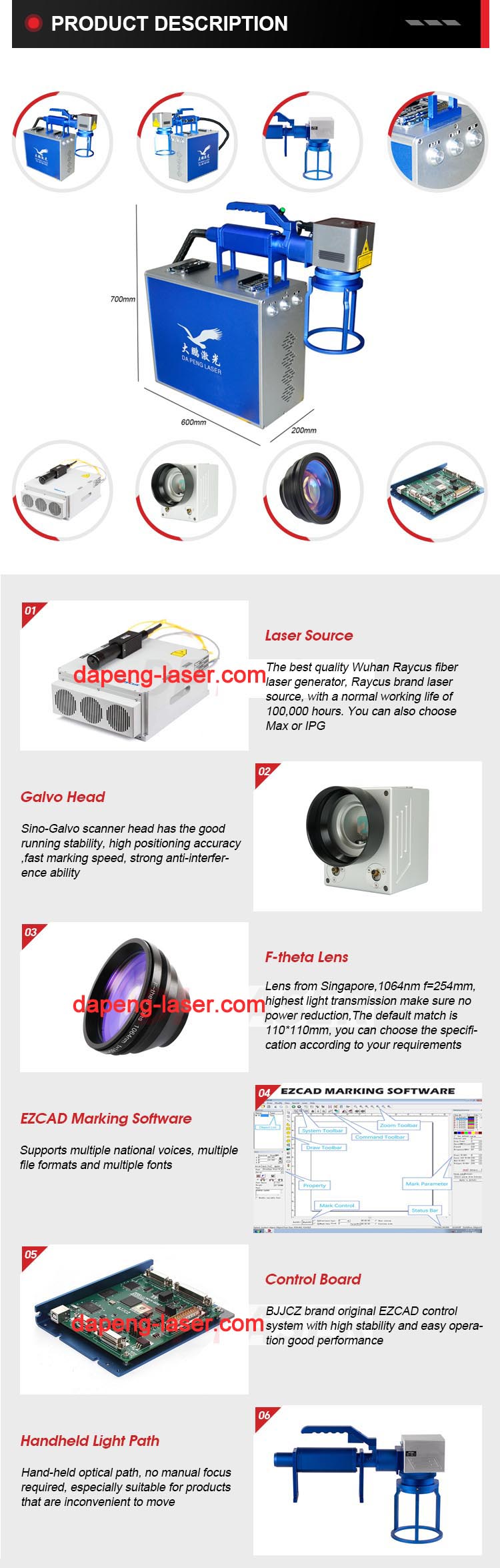

Product overview

Features:

1. Excellent light quality:
    Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking.
2. Low usage cost:
    Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500W, it is the 1/10 of laser pump lamp marking machine. It greatly saves the cost in power consumption.
3. Free maintenance & long service life:
    Using laser diode as the source of pump, full sealing light path design, its average no-failure operation is over 100 thousand hours.
4. Fast process speed:
    Its processing speed is 5-10 times faster than traditional laser marking machine.
Application :
Metal Industry, Jewelry Factories, Hardware Tools, Electronics Components, Auto Parts, Mobile & Accessories, Clock&Watches, Planting Coating Materials, Spray Material, Plastic, Rubber, Spectacles,etc.
Specification:
Laser wavelength  1064nm
Power adjustment range  10-100%
Repetition frequency  20-80KHz
Output beam quality  <1.8m²
Marking linear depth  0.01-0.2mm
Min. Spot diameter  0.01mm
Min. Character size  0.1mm
Repetition accuracy  ±0.02mm
Max. Liner marking speed  7000mm/s
Marking format PLT, DXF, CDR, AI, DWG, etc.
Software  EZCAD
Standard marking area 20W     100×100mm
30W     100×100mm
Power consumed <500W
Electrical demand 220V  10%/50Hz/4A
Cooling mode Air-cooling
Control interface USB



Software: EZCAD

True Type Fonts Single Stroke Fonts Elliptical Text
Sequential Serial Numbers Customizable Auto Dating Barcodes
QR Codes and Data Matrix UID Wizard Logos
Images - JPG, TIF, GIF CorelDraw, Adobe Illustrator Raster Graphics
Vector Graphics  CAD Files

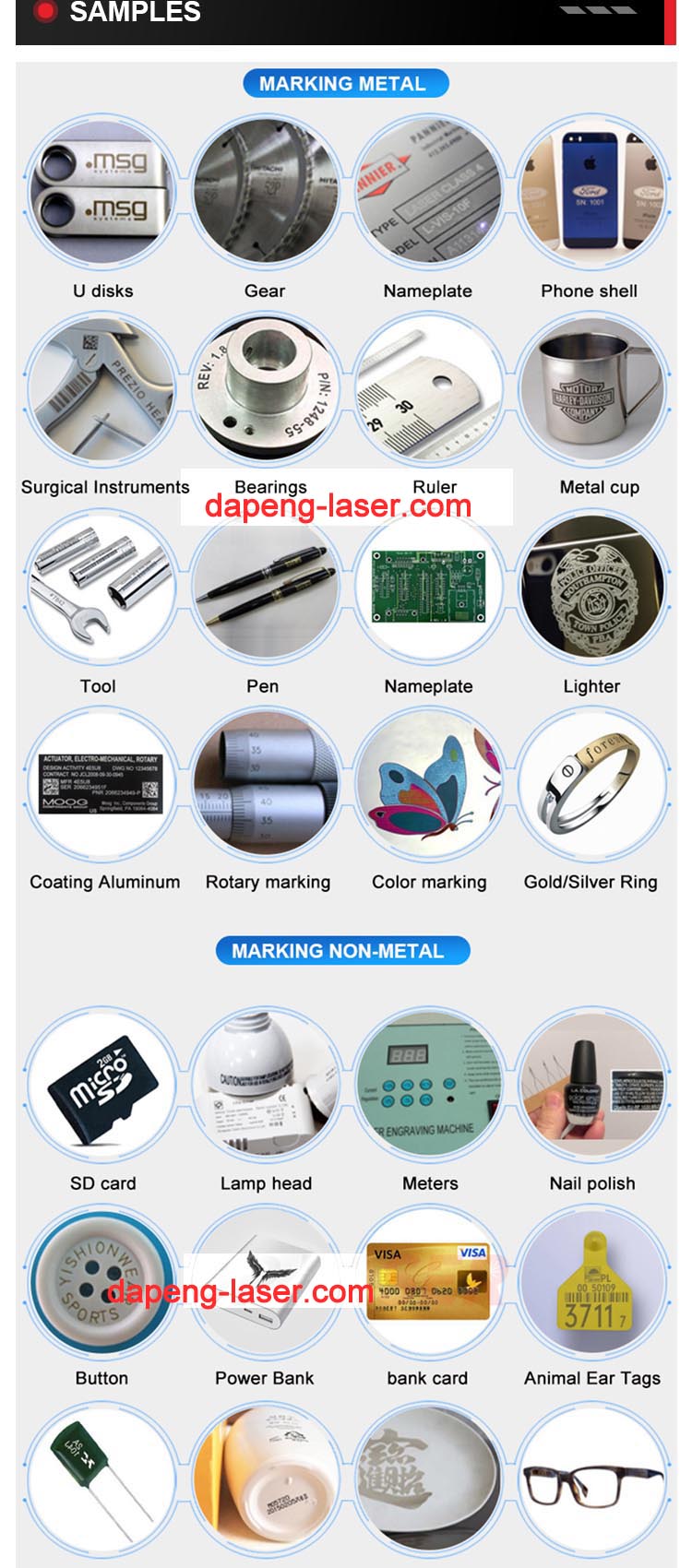

Materials:

Stainless Steel Steel Aluminum, Carbide
Nickel Titanium Cast Iron
Chrome Painted Metal Alloys Multi-Coated Metals
Plastics/Rubber Backlit Buttons Polycarbonate
PVC Composites Many more materials



* Top 5 Laser Company in China
* Hold ISO 9001:2015, CE, SGS, FDA
* Sold 4500 units per year
* Served more than 10000 customers
* Recruiting distributor
* Share technical data to teach you how to connect machine with PLC or automation line
